For agricultural equipment imports to the United States, achieving a 0% customs duty rate is entirely possible if the equipment is declared for exclusive agricultural use. We are glad to assist you in claiming this exemption! Our team will prepare the official declaration form requesting the 0% duty rate. You only need to sign it, […]
SD card is the weakest point of the RTK base station. We ship our RTK Base with industrial SD card and still failor is happens sometimes. Furtunatly the repairement is fairly easy. Here is a step by step guide for creating a new SD cadr for raberry Pi based RTK base: take a good quailty […]
Setup Guide for AgOpenGPS RTK Tablets from our shop comes preconfigured, you need to set only the closest base station, step 7. Open AgIO window Click NTRIP button Move down and click “Client NTRIP” Make sue that “NTRIP On” button is green Set the caster name, than verify button centipede.fr Set the username and password […]

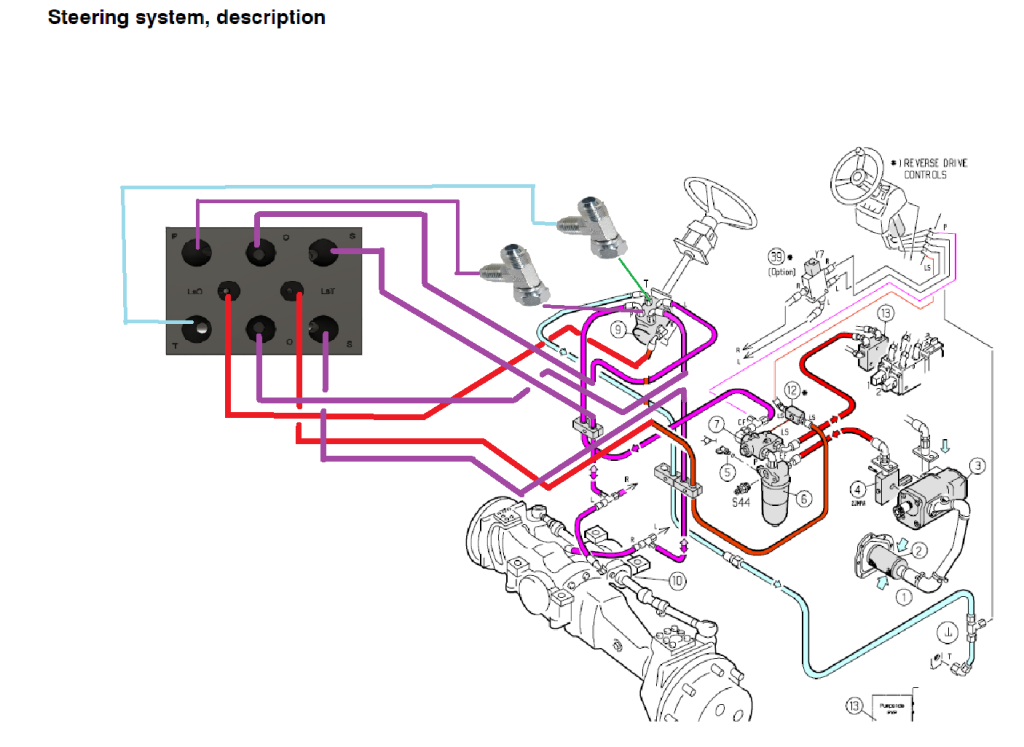

CANbus steering This is the best solution. Here, an external controller asks the tractor to turn the wheels in the right direction. The tractor itself processes signals from various safety and other sensors. For example, if there is no one in the seat or the clutch is slipped, or if the tractor is stationary or […]
To ensure you select the correct adapter, the most reliable method is to remove the steering wheel and measure the diameter of the splined shaft, as shown in the image.
In most cases, the spline count is 36; therefore, the diameter is the determining factor. Based on our experience, dimensions are consistent across certain brands.
Models for which the data in the table below are highly reliable:
John Deere and newer machines from the CNH Group: A+
Claas and Massey Ferguson: N
| Adapter Model | Tractor Brands & Models | Adapters teeth no. | Adapters size |
|---|---|---|---|
|
A+ |
CNH group newer:
|
36 |
21.8-22.1 |
|
D |
|
36 |
20.4 |
|
K |
|
36 |
17.8 |
|
N |
|
36 |
15.8 |
|
B |
|
36 |
18.2 |
|
W |
|
36 |
18.5 |
|
F |
|
single key |
24.5 |
|
NH40 |
older ones:
|
40 |
17.7 |
|
T |
|
18 |
15.45 |
|
G |
RARE:
|
36 |
15.6 |
|
C |
|
single key (conical) |
23.33-25.4 |
|
BENZ- 72S |
|
72 |
23.5 |
Add an external 4G router to your kit if:
